Home> Products> Foundation Anchor Bolt> L Anchor Bolt> Anchor Bolts L-Shaped Galvanized Steel M5M20M24
Anchor Bolts L-Shaped Galvanized Steel M5M20M24
Anchor Bolts L-Shaped Galvanized Steel M5M20M24
Anchor Bolts L-Shaped Galvanized Steel M5M20M24
Anchor Bolts L-Shaped Galvanized Steel M5M20M24
Anchor Bolts L-Shaped Galvanized Steel M5M20M24
Anchor Bolts L-Shaped Galvanized Steel M5M20M24
Anchor Bolts L-Shaped Galvanized Steel M5M20M24

Anchor Bolts L-Shaped Galvanized Steel M5M20M24

$0.51000-2499 Piece/Pieces

$0.2≥2500Piece/Pieces

Payment Type:T/T
Incoterm:FOB
Transportation:Ocean
Port:Tianjin,Shanghai
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Other information
Product Attributes

Brand: ShiJingChangTian

Product Name: L Anchor Bolt

Material: Carbon Steel

Surface Treatment: Hot Dip Galvanizing

Finish: Zinc, Plain

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : We will pack and ship according to customer's requirements

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Product Description

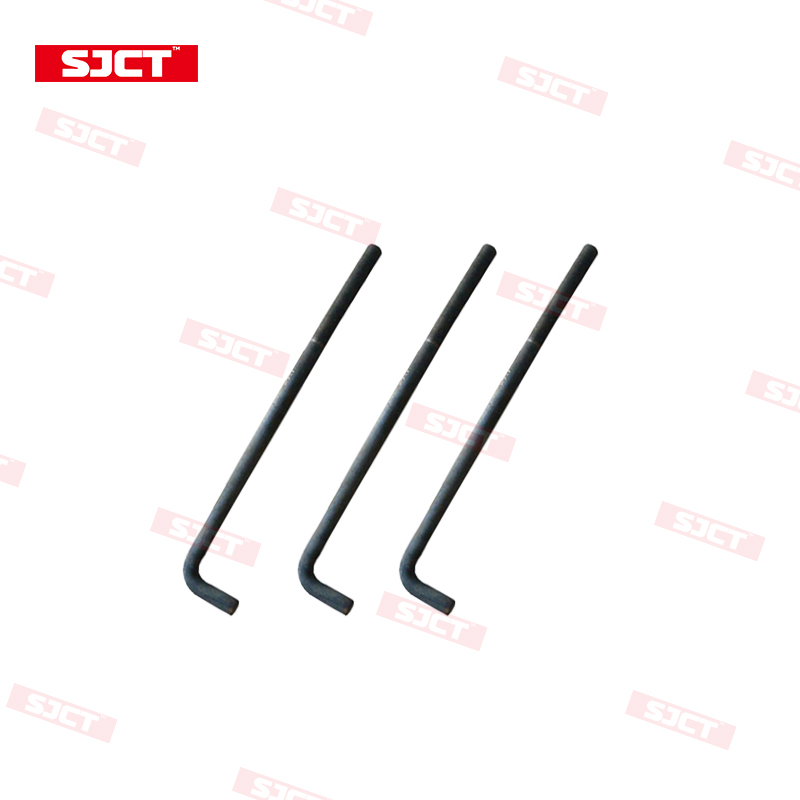

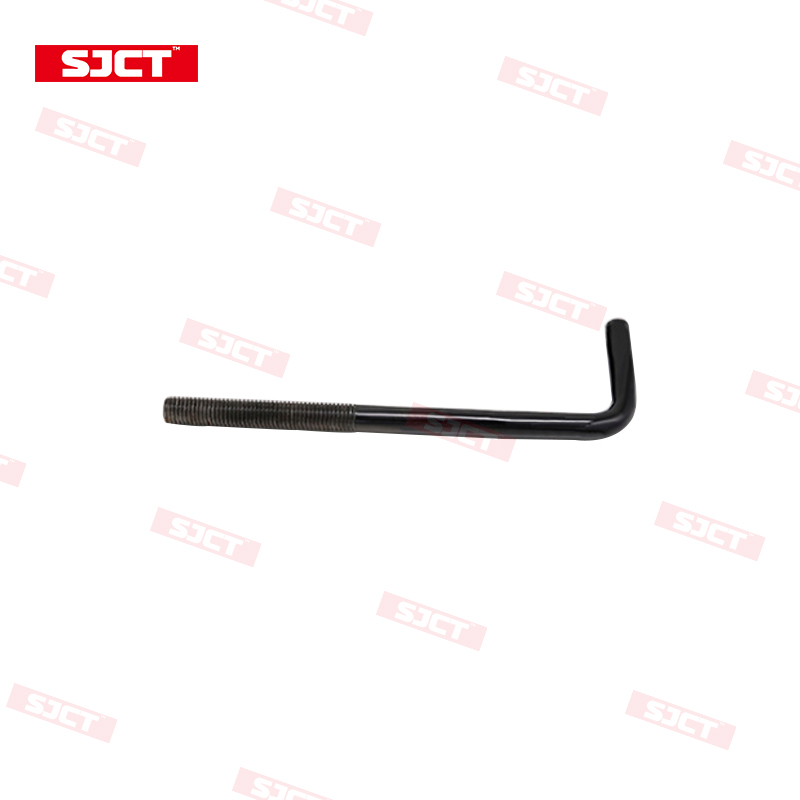

Anchor Bolts L-Shaped Galvanized Steel M5M20M24
L-shape anchor bolts, also known as L-bolts or Concrete Anchor legs, are essential fastening components designed to provide secure structural connections between concrete foundations and various superstructures. These 90-degree angled bolts feature a threaded vertical shaft with an L-shaped bend at the base, engineered to create mechanical interlock within cured concrete.

Crafted from premium carbon steel (Grade 4.8/8.8/10.9) or stainless steel (SS304/SS316), our L-bolts undergo rigorous quality control to meet international standards including ISO 898-1, ASTM F1554, and DIN 580. Available in diameters ranging from M8 to M36 (1/4" to 1-1/2") with lengths from 150mm to 1500mm, these anchors accommodate diverse load requirements. The hot-dip galvanized (HDG) or hot-dip galvanized & painted surface treatment ensures exceptional corrosion resistance, achieving 550g/m² zinc coating thickness for demanding environments.

Application Scenarios & Industry Usage
A. Construction Engineering
- *Structural Steel Connections: Portal frame bases, steel column footings, crane rail foundations
- Load capacity example: M24x800mm anchors withstand 180kN ultimate tension in C40 concrete
B. Heavy Machinery Installation
- CNC equipment bases, turbine generator mounting, press machine foundations
- Vibration damping achieved through our patented ViscoShock™ nylon sleeves
C. Infrastructure Projects
- Bridge bearing systems, highway guardrail posts, tunnel lighting supports
- Seismic performance: Meets IBC 2018 requirements for SDC D zones
D. Power & Utility Installations
- Wind turbine tower flanges (GL Certified)
- Substation equipment, transmission line towers
- UV-resistant coating available for outdoor exposure
E. Specialized Applications
- Modular building connections
- Solar Tracker mounting systems (aluminum alloy variants available)
- Floating dock anchoring systems (marine-grade SS316L)


L Anchor Bolt30L Anchor Bolt29L Anchor Bolt37L Anchor Bolt36L Anchor Bolt32
Our company has a variety of styles can be customized:
9 Anchor Bolt
